DCC Wave Waterbed

Introducing the DCC Wave Waterbed: engineered specifically for free-stall barns, this advanced waterbed system delivers a new standard of well-being for your herd. Featuring a dual-chamber design with a premium foam base, the DCC Wave Waterbed ensures optimal comfort and traction every time cows settle into their stall. This layered solution supports natural movement, enhancing rest and promoting healthier, happier cows.

What makes the DCC Wave Waterbeds different? Their ability to address common challenges in dairy barns. The front chamber gently supports cows’ knees while the larger rear chamber cradles their bodies, minimizing pressure points and reducing stress on joints, which are key factors in maintaining robust health and consistent milk production. With the inclusion of our popular 1.5" comfort pad, additional comfort and traction to the stall makes this an optimised comfort solution.

Features & Specs

  • Premium 1.5” high-density memory foam, sealed with a durable moisture barrier for lasting performance.
  • Innovative dual-chamber system manages water flow for customized comfort and stability.
  • Front chamber gently cushions cows’ knees, supporting natural movement and reducing injury risk.
  • Spacious rear chamber floats the body, minimizing pressure points and enhancing relaxation.
  • Efficient filling with only one fill port located at the top (brisket) end of the bed
  • Available in a wide range of sizes to fit modern free-stall layouts:
    • 40" x 74" (101.5cm x 188cm)
    • 42" x 78" (106.5cm x 198cm)
    • 44" x 78" (112cm x 198cm)
    • 46" x 78" (117cm x 198cm)
    • 47" x 78" (119cm x 198cm)
    • 48" x 78" (122cm x 198cm)
    • 50" x 78" (127cm x 198cm)
  • Uses: Free-stall

Warranty

  • Backed by a robust manufacturer’s warranty for peace of mind and investment protection.
    • 10 years (free stall)

Downloads

  • Download the DCC Waterbeds Brochure Download

System Components

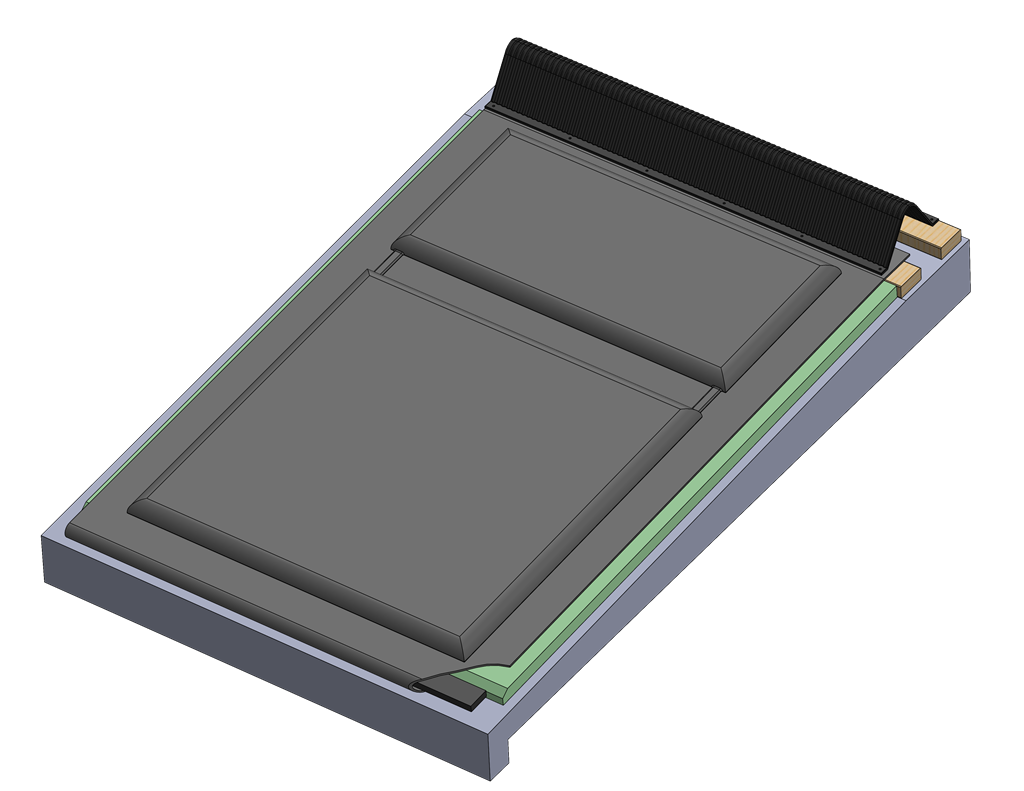

Dual Chamber Waterbed

The Wave waterbed features two chambers connected by small tubes between the front and rear chambers. These tubes are designed to be narrow enough that there is no noticeable water displacement between chambers. As a result, the system requires only a single fill port located above the front chamber. Having one fill port allows for faster filling and easier installation.

Optimum Density Foam

1.5” high density foam enclosed in plastic moisture barrier for added comfort and stall traction between the concrete pad and dual chamber waterbed.

Optional: POLY PILLOW

Recommended for all of Promat’s stall system: A specialised brisket locator used to help position cows correctly and comfortably and aids with cleaning. Compatible with all of Promat’s stall systems.

Request A Quote
